Product Description：

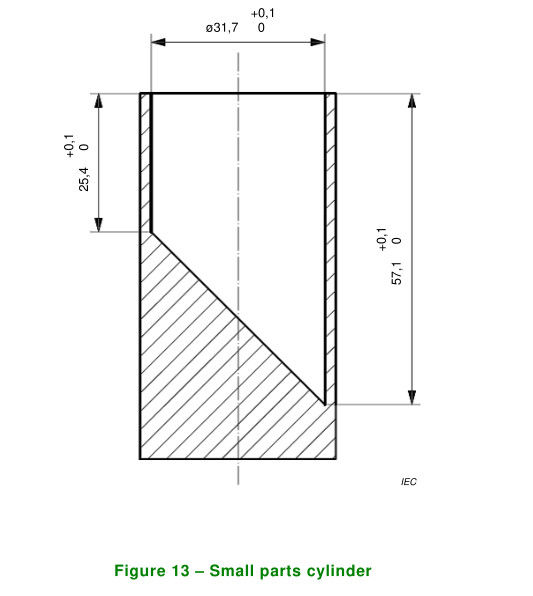

Name：IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinder

Type：BND-SPC

Refer Standards:

This small parts cylinder conforms to IEC60335-1: 2013 clause 22.12 figure 13, ISO 8124-1 clause 5.2 and fig. 15, etc.

It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.

Application:

It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.

Test Principle:

The testing object is placed into the tester from any directions. If it can reach to the button of the tester, the object is proved to be small object.

Technical Parameters of Small Parts Cylinder

Technical Parameters:
