Product Description：

Specification:

1, According to : UL1278、UL1026 and UL507 Figure 8.1.

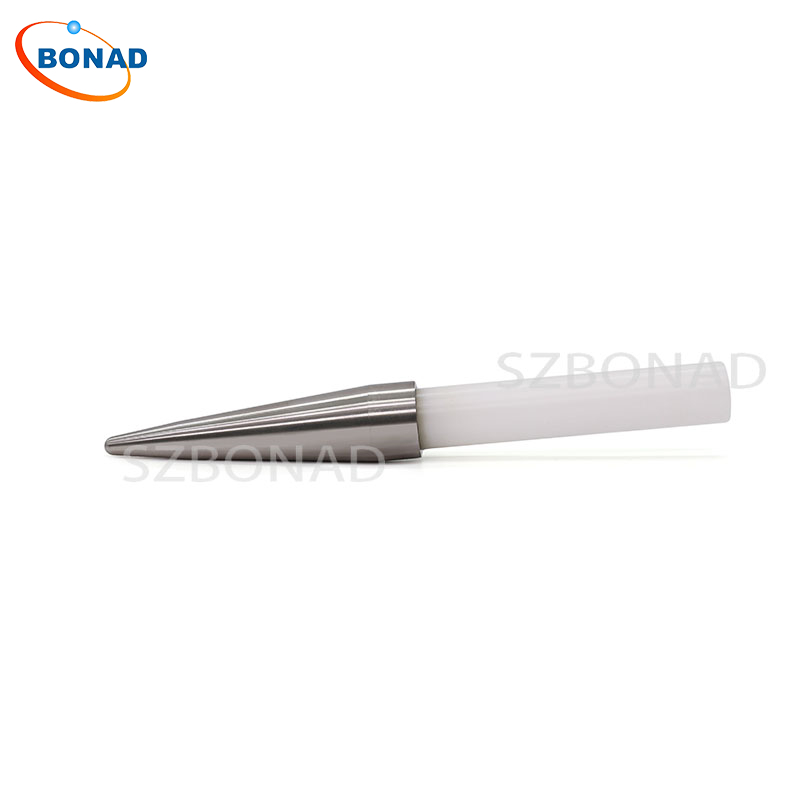

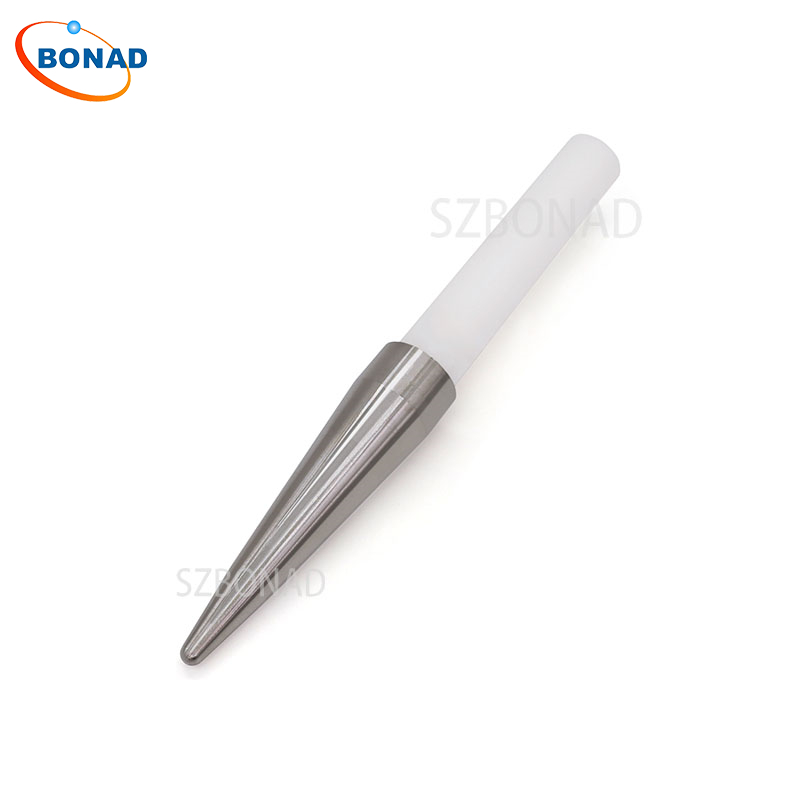

2, PA160B Test Probe/ UL Test Probe is necessary appliance for household and similar electrical appliance of against electric shock protection test

Technical Parameters:

1, Total Length :88.9mm(3.5 inch)

2, Head Length :25.4mm(1 inch)

3, Head Radius: R 3.175mm(1/8 inch)

4, Former Head Diameter:12.7mm(1/2 inch)

5,Tail Diameter :25.4(1 inch)

6, Reference standards :UL507 (PA160B), figure 132.1 UL1278 figure 9.1 (PA160)

Application:

According to different standard, the method of use is slightly difference. UL Test Probe can not touch the hazardous parts. In most case, it needs to exert certain 4.4 N (1 lb).

Note: Because UL test Probe is precision machinery product, please taking up and putting down gently, and safe keeping
