Product Description：

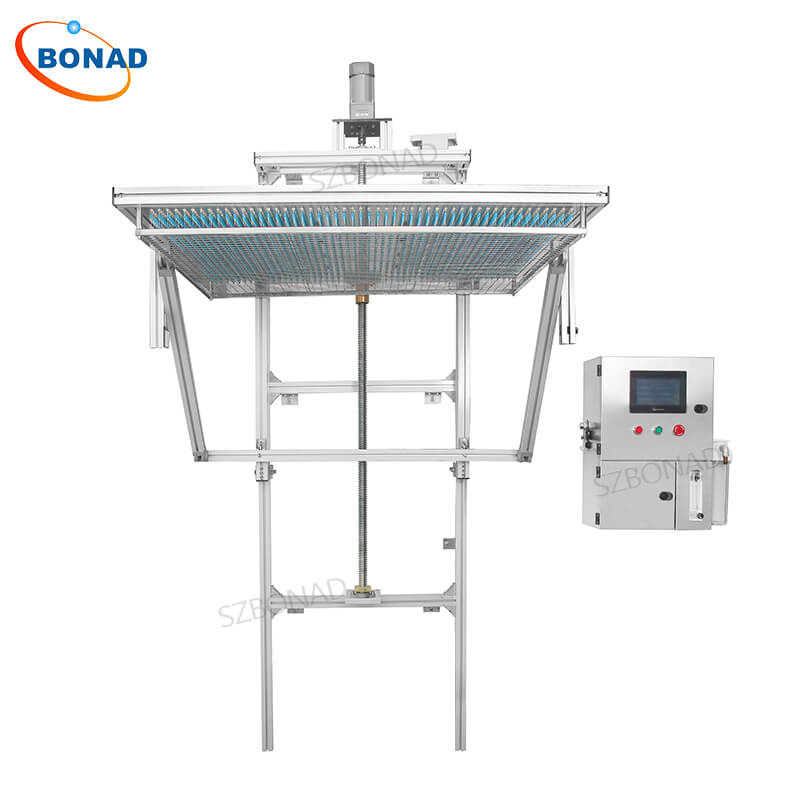

Wall Mounted Type lPX1 /IPX2 Waterproof Drip Test Equipment
Mdoel:BND-IPX12C
Test standard:
In accordance with IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "enclosure protection class (IP code)" 14.2.1,14.2.2 terms and Figure 3 and GB7000.1 "lamps Part I: General Requirements and test "9.2.3 requirements.
Drip Equipment use:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
| Technology parameter： | ||||
| No. | model | BND-IPX12C-800 | BND-IPX12C-1000 | |
| 1 | Drop of rain area | 800*800mm（can customize） | 1000*1000mm（can customize） | |
| 2 | Equipment outer dimensions | L1000*D1000*H2500mm | L1200*D1200*H2500mm | |
| 3 | Turntable diameter | ￠500 mm | ￠600 mm | |

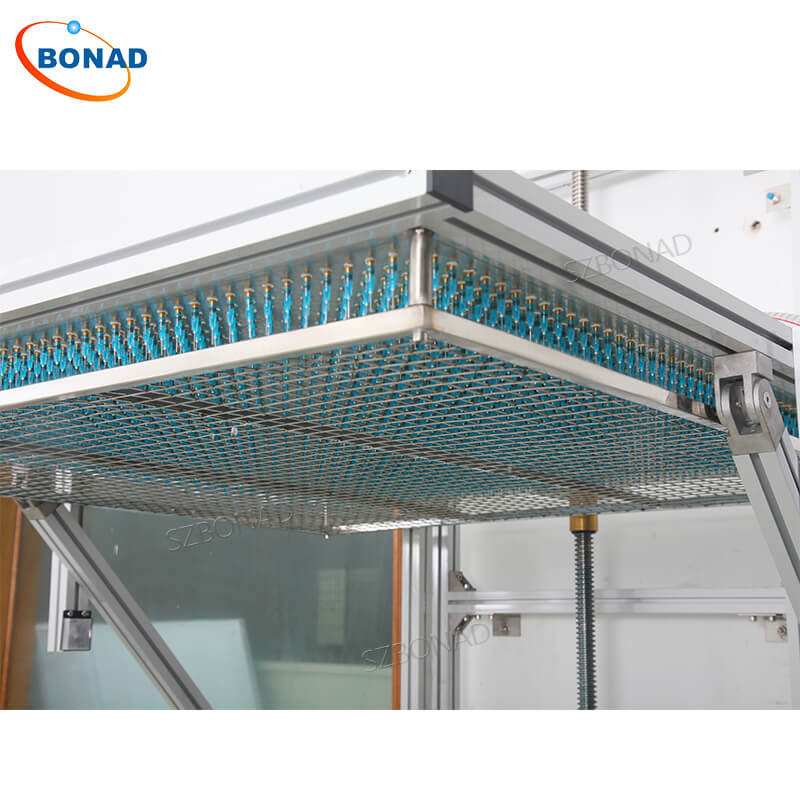

| 4 | Dripping aperture | ￠0.4mm。 | ||
| 5 | The distance between holes | 20*20 mm | ||
| 6 | Rainfall | 1-5mm/Min(±0.5mm/min) | ||

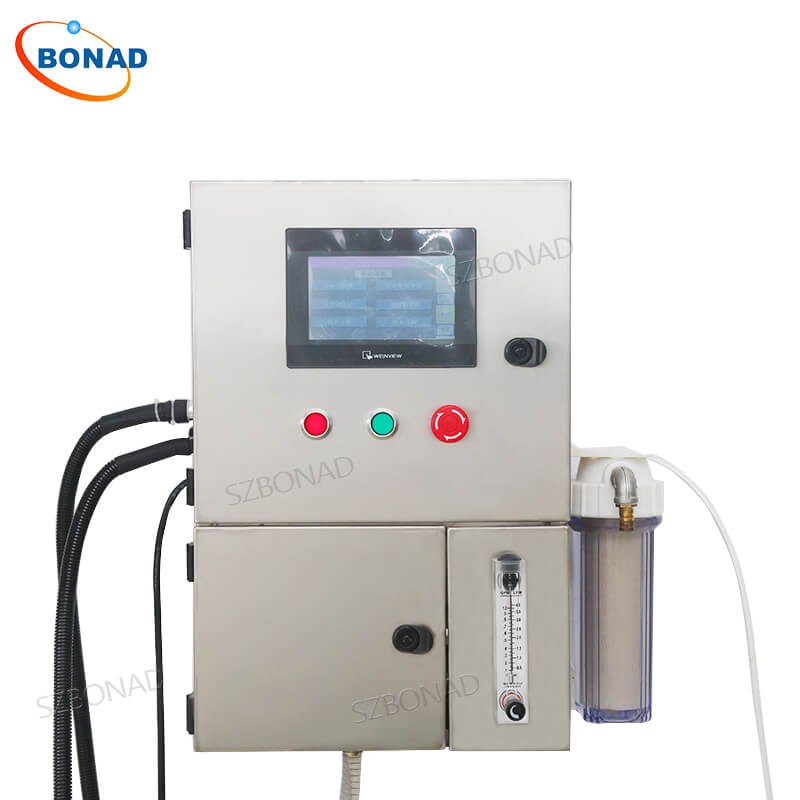

| 7 | Flow adjustment mode | manual setting | ||

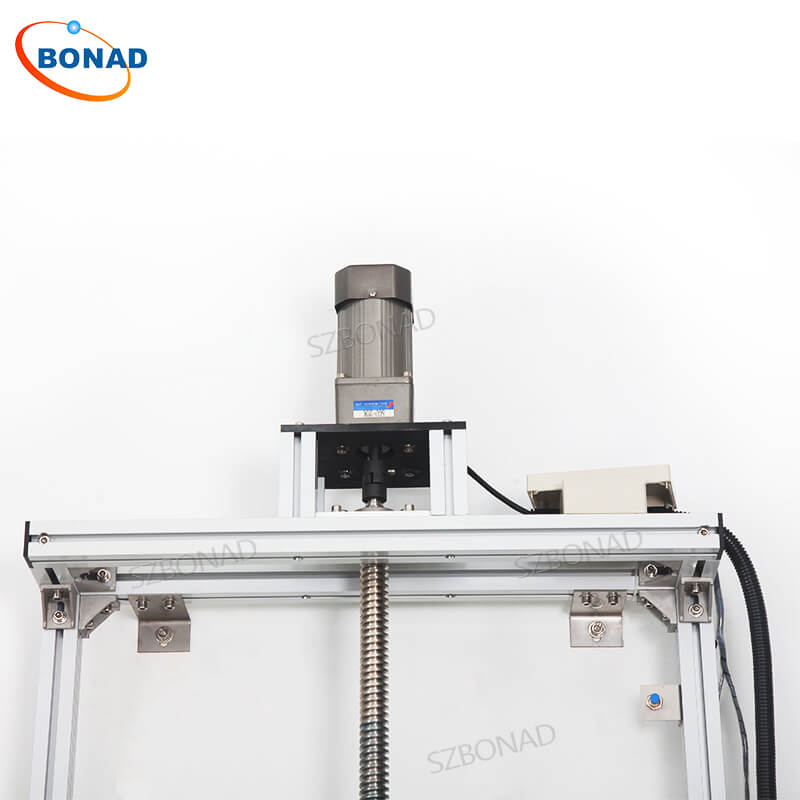

| 8 | Drop of rain tank lifting height | 1000*1800 adjustable | ||
| 9 | Turntable bearing | 50KG | ||
| 10 | Turntable Speed | 1 r/min | ||
| 11 | Turntable Adjustable Incline | 0° or 15° | ||
| 12 | Turntable lifting range | Fixed | ||
| 13 | Testing time | 0-999 min | ||
| 14 | Protective device | Leakage, water shortage, short circuit | ||
| 15 | Power (V) | 220V | ||
| 16 | Power (KW) | 1 | ||
| 17 | Standards compliant | IEC60529:1989+A1:1999（IPX1 IPX2) | ||
