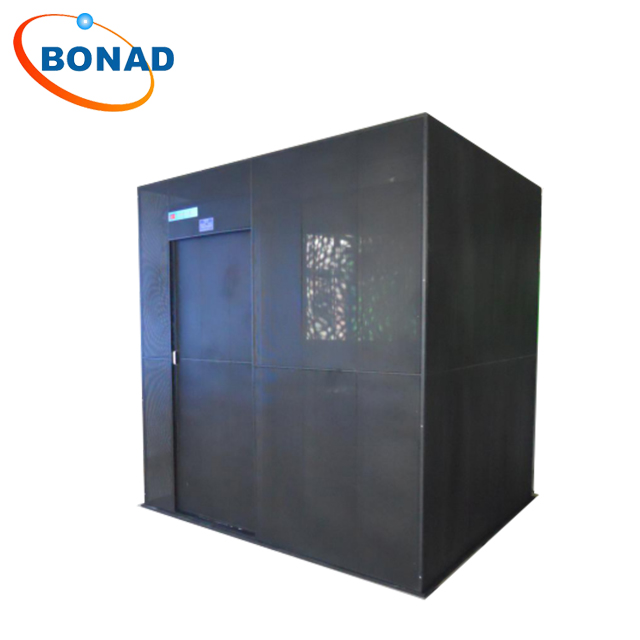

Device function

Suitable for a variety of lamps and accessories to avoid air convection when testing temperature rising, to prevent air temperature changes and the influence from the light source of heat on the sample

Reference standards

IEC 60598-12014/GB7000.1-2015

Features of equipment

1, humanization design,it is convenient to assemble and separate ; the top skeleton Consists of heavy steel, which can bear 30kg of the sample.

2, taking into account the connection between the sample and the power cord, there is a hole for wires on both sides,which make it easy to link.

3, the screen plate is made of high-quality steel plate,stamping by the high precision CNC punch, and to make sure accuracy the aperture and spacing of the hole.

4, It needs to have a complete assembly after welding of the screen plate, and then separate them and be stoving varnish , the color of stoving varnish is according to standard IEC 60598 to be with matte black, advanced paint technology can make the appearance to be beautiful and durable.

5, single door design to ensure that the thickness of the door to meet the standard requirements of the distance of 150mm, the door size of 1750 * 900mm.

6, the bottom plate with 19mm high-quality plywood, the surface all sprayed with matte black.

7, the top standard configuration 600 * 600 * 19mm high-quality plywood, with a screw on the top of the skeleton, used to install the ceiling.

8,Draught-Proof enclosure standard configuration Multi-functional mounting bracket: the use of steel square tube welding molding stent and platen height adjustable in the 800-1300mm, platen with 800 * 600mm high quality matte black plywood, vertical or horizontal direction adjustable , Suitable for installation of table lamps and wall lamps.

9, the standard accessories:

Cable length: 3 meters

 Universal socket (10A) :1 pc

 temperature copper: 20 pcs

Technical specification

Outer size（mm）

L:1450*W:1600*H:1900(can be customized）

Inner size（mm）

L:1150*W:1300*H:1750(can be customized）

Bottom plate size（mm）

L:1490*W:1640*H:20

Aperture of screen plate(mm)

∮2

ventilation rate of screen plate

40%±5%

Thickness of screen plate（mm）

1

space between inner and outer（mm）

150
