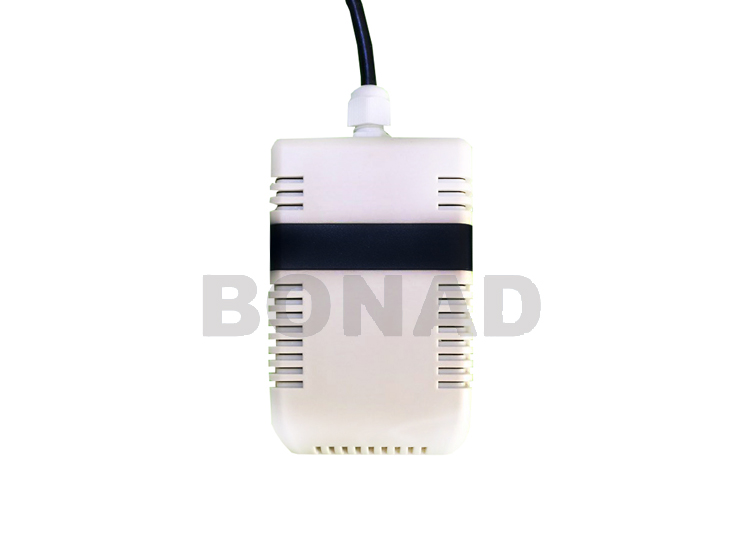

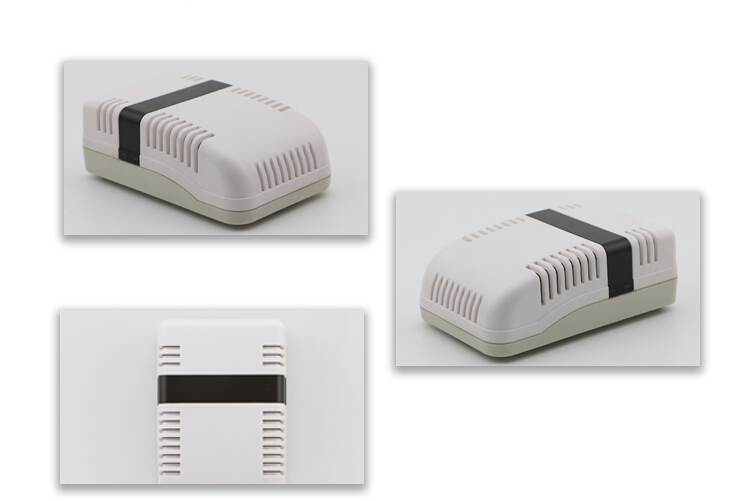

CO2 Gas Concentration Sensor/ Carbon Dioxide Transmitter

CD10 carbon dioxide transmitter uses dual-channel non-dispersive infrared gas detection technology detection principle, built-in temperature compensation function, with high sensitivity, oxygen-free gas dependence, long life, high precision, good stability, good repeatability, is not affected by other gas (CH4, H2S, SO2, N2, O2, etc.) . Can be widely used in meteorological, environmental, agriculture, aquaculture, greenhouse, laboratory, HVAC refrigeration control and other types of carbon dioxide concentration measurement of the occasion.
Description

Product Description：

Name：CO2 Gas Concentration Sensor/ Carbon Dioxide Transmitter

Type：BND-CD10


Appliance :

CD10 carbon dioxide transmitter uses dual-channel non-dispersive infrared gas detection technology detection principle, built-in temperature compensation function, with high sensitivity, oxygen-free gas dependence, long life, high precision, good stability, good repeatability, is not affected by other gas (CH4, H2S, SO2, N2, O2, etc.) . Can be widely used in meteorological, environmental, agriculture, aquaculture, greenhouse, laboratory, HVAC refrigeration control and other types of carbon dioxide concentration measurement of the occasion.


Characteristics :

(1) dual-channel non-dispersive infrared gas detection technology, the sensor life of up to 10 years. Anti-water vapor interference, not poisoning.

(2) dual-channel measurement method, the effective elimination of changes in the external environment conditions on the impact of measurement.

(3) breathable structure to ensure rapid response to changes in concentration.

(5) high precision, fast response, good interchangeability, reliable performance.

(6) perfect protection circuit with a variety of signal output interface optional.


Technical Parameters

Output Signal

Voltage Output0-2V

（The output impedance of approximately 0 Euro）

Current output4-20mA

Load Resistance

<500ohm）

RS485 Interface

Modbus Protocol

Supply voltage

12-30V/ DC

12-30V/DC DC

12-30V/DC DC

Static power

60mA@24V DC DC

80mA@24V DC DC

(Two current output channels are 20mA)

60mA@24V DCDC

CO2 range

0-1000ppm

0-2000ppm

0-5000ppm

0-10000ppm（1%）

0-30000ppm（3%）

0-50000ppm（5%）

The measuring principle and measuring method

Carbon dioxide infrared dual channel measurements

Preheating time

3 mins

Response time

90 S (90%)

Level of protection

IP54

Operating Environment

Working temperature:-20～60 ℃

Working Humidity :0～95% RH （no freezing）

Installation Method

Install with wall

The default cable length

1M, can be customizable

Connection

Preloaded cold terminal

Size

130*70*42mm


Code Choose:(Please tell us which model would you need to buy?)

Code number

Code

Code Description

Code 1:

Products

MEC10

CD10 carbon dioxide transmitter

Code 2: measurement parameters

A

carbon dioxide (CO2)

Code 3:

carbon dioxide Range

A

B

C

D

E

F

0-1000ppm

0-2000ppm

0-5000ppm

0-10000ppm（1%）

0-30000ppm（3%）

0-50000ppm（5%）

Code 4:

display

A

B

With display

Without display

Code 5:

supply voltage

A


12-30V DC

Code 6:

Output signal

A

B

C

D

E

F

Voltage Output 0-2V

Current output 4-20mA

RS485 interface ,Modbus Protocol

RS485 interface,Modbus Protocol & Voltage Output0-2V

RS485 interface,Modbus Protocol & Current Output4-20mA

custom design

Code 7:

line length

001

XXX

1M

custom design

Code example:

carbon dioxide transmitter, range:0-5000ppm,with display,12-30V DC,RS485 interface,Modbus protocol,

5M cable. Code sample ：BND-CD10 - A C A A C 005
